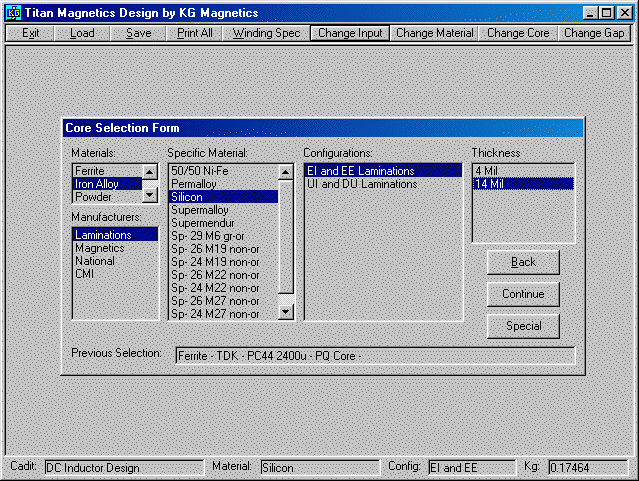

| Selecting the core
material type and core manufacturer is done from this window. The selection
of the core material and manufacturer is done from the magnetics materials,
dialog box. Here, you will select the manufacturer's data files using the
mouse. To select the data: (1) Click on the material, "Iron Alloy"; (2)
Click on the manufacturer, (generic) " Lamination"; (3) Click on the specific
material, "Silicon"; (4) Then, click on the configuration, "EI and EE Laminations," and a thickness of 14 mils. Each box will be highlighted. When finished, click
on "Continue". The "Special Button" will let you use the cores created in
the Core Conversion program. |
